Access to the Interface

General

Access to the MQTT Broker in Xesar is established with a mutually authenticated TLS connection. For this a client key and certificate is required.

The access rights corresponding to specific commands are bound to the user groups that the user that you are downloading for belongs to. The API Documentation will always present the required rights for that specific action. So always look out for Required permission in the documentation.

Download via UI

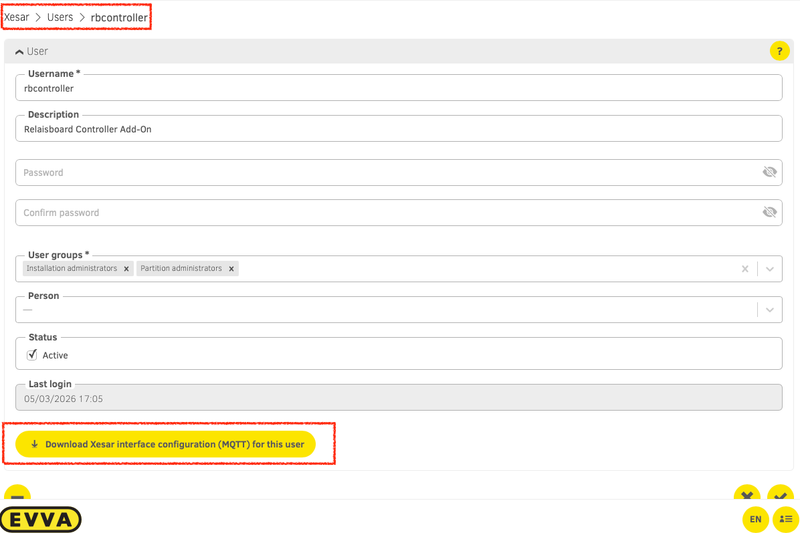

You can download the access configuration with the key and the certificate manually from a user.

Obtain via REST interface

You can also obtain the certificates and authorization token through a REST API.

The following example shows how to obtain the MQTT access configuration using curl and jq and can be easily implemented in any programming language that supports HTTP requests and JSON parsing.

Obtaining the authorization token: POST /api/v1/login with Body: { "name": "username", "password": "password" }
Obtaining the MQTT access configuration: GET /api/v1/user/mqtt-configuration with the obtained token in the Authorization header.

# Using curl and jq - make sure you adjust the HOST, USERNAME and PASSWORD to your system

HOST="example.com"
USERNAME="foo"
PASSWORD="bar"

# Fetch an authorization token
TOKEN=$(curl -X POST "https://${HOST}/api/v1/login" -H "accept: application/json" -H "Content-Type: application/json" -d "{ \"name\": \"${USERNAME}\", \"password\": \"${PASSWORD}\"}" | jq -r '.token')

# Get the MQTT access configuration - this will return the MQTT broker address, port and authorization token as well as the certificate required to authenticate with the broker.
curl -X GET "https://${HOST}/api/v1/user/mqtt-configuration" -H "accept: application/json" -H "Authorization: Bearer ${TOKEN}" | jq

The response will contain the following information:

{
  // The Base64 encoded (PEM) certificate, certificate authority and key
  "ca": "string (base64)", // The certificate authority (PEM)
  "cert": "string (base64)", // The certificate (PEM)
  "key": "string (base64)", // The private key (PEM)
  // The MQTT connection properties
  "apiProperties": {
    "userId": "string (uuid)", // The user ID
    "brokerAddress": "string", // The broker address
    "brokerPort": integer, // The broker port
    "token": "string" // The publish authorization token
  }
}
